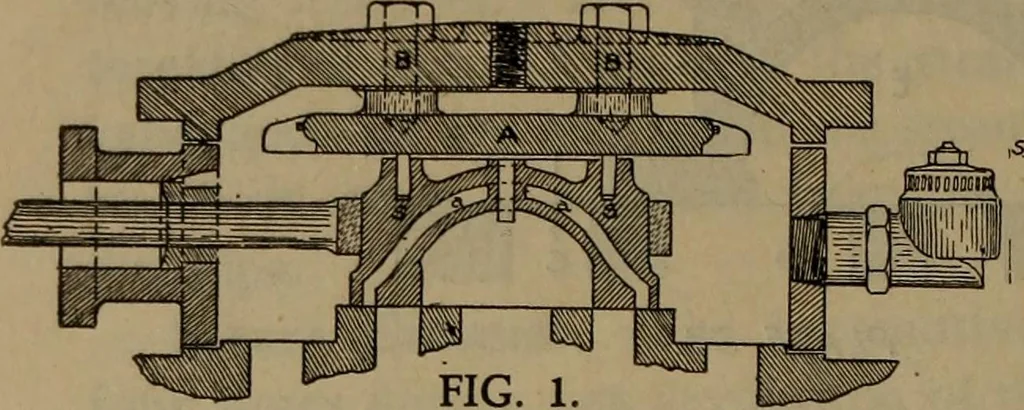

PLATE 54. BALANCE SLIDE-VALVES. A balance slide-valve is a valve so constructed thata certain percentage of the top surface of the valve is ex-cluded from steam-chest pressure. Plate 55 (Fig. 1)shows a Richardson balance valve as it appears insidethe steam-chest. Fig. 2 shows the top of the valve… … FIG. 1
