Mechanical movements, powers, devices and appliances (1901)
Hiscox, Gardner Dexter, 1822?-1908 · New York, N. W. Henley & company · leaf 191

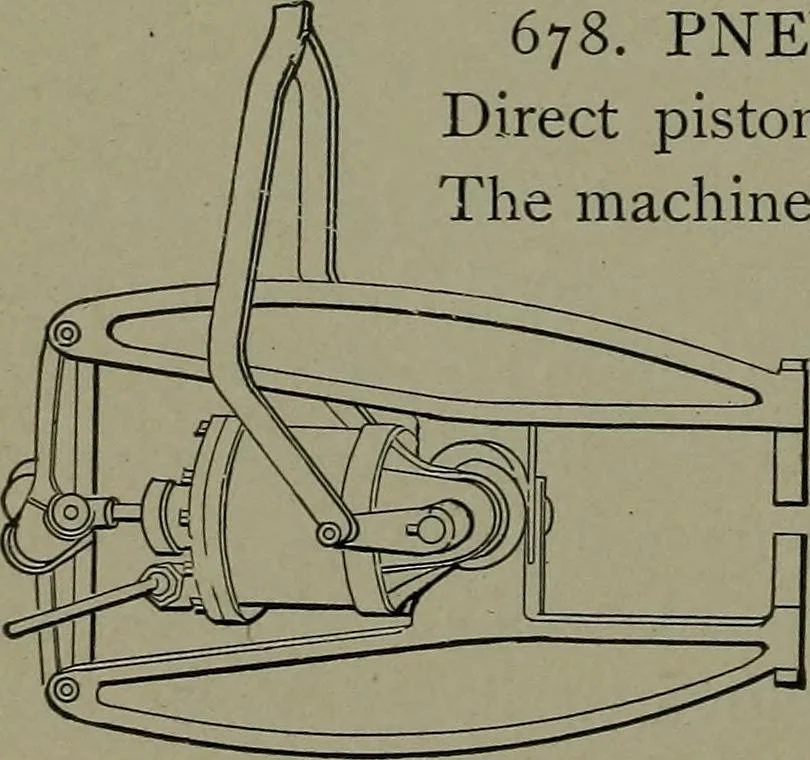

677. PORTABLE RIVETER, Allenmodel. The toggle joint is pivoted to a camand also within the trunk piston. By thedifferential trunk form, the return stroke econ-omizes the compressed air, the large piston^=* area giving great power to the riveting stroke. … 678. PNEUMATIC PORTABLE RIVETER.—Direct piston and toggle-joint motion to the levers.The machine is balanced on a forked suspender. The piston draws the toggle joint in by air pressure.
Mechanical movements
