Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in constructive and operative machinery and the mechanical arts, being practically a mechanical dictionary, commencing with a rudimentary description of the early known mechanical powers and detailing the various motions, appliances and inventions used in the mechanical arts to the present time, including a chapter on straight line movements, by Gardner D. Hiscox (1914)

Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 193

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in constructive and operative machinery and the mechanical arts, being practically a mechanical dictionary, commencing with a rudimentary description of the early known mechanical powers and detailing the various motions, appliances and inventions used in the mechanical arts to the present time, including a chapter on straight line movements, by Gardner D. Hiscox, 1914, leaf 193

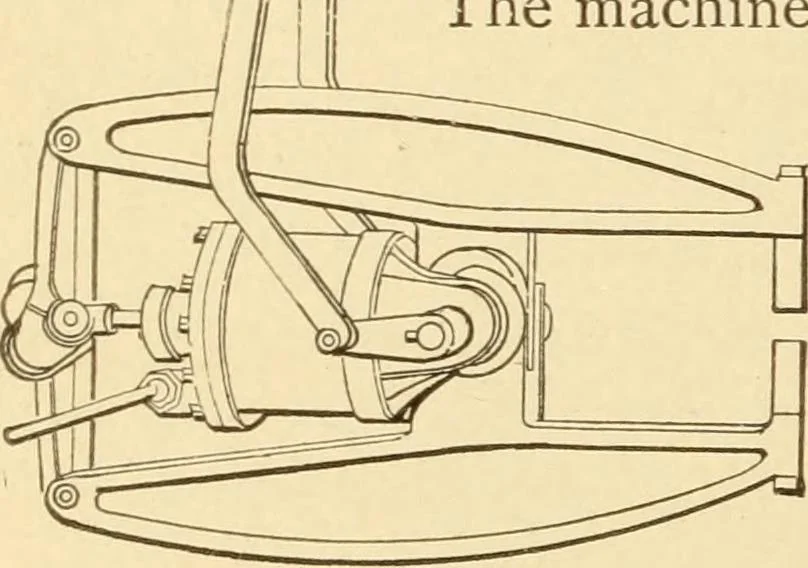

677. PORTABLE RIVETER, Allenmodel. The toggle joint is pivoted to a camand also within the trunk piston. By thedifferential trunk form, the return stroke econ-omizes the compressed air, the large pistonarea giving great power to the riveting stroke. … 678. PNEUMATIC PORTABLE RIVETER.—Direct piston and toggle-joint motion to the levers.The machine is balanced on a forked suspender. The piston draws the toggle joint in by air pressure.
