Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 342

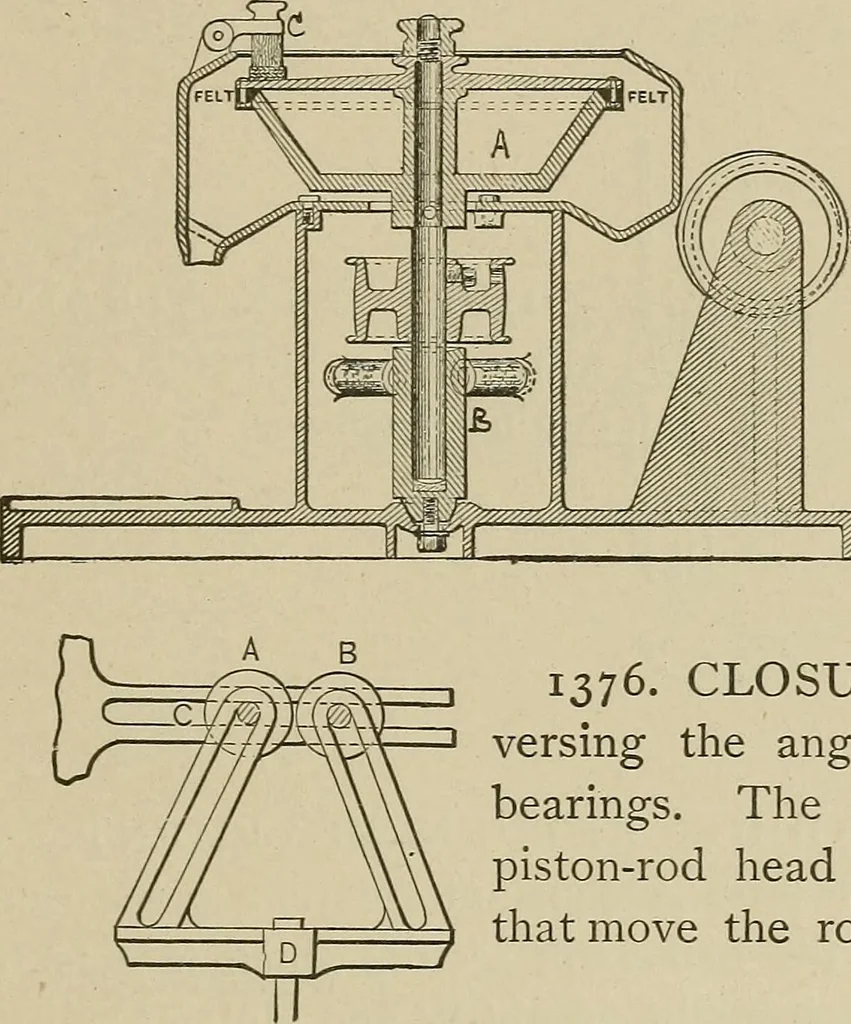

1374. POWER RUMBLING MILL, for cleaning sand from castings, pol-ishing metal articles by tumbling withsand, charcoal, leather scrap, or anypolishing powder. 1375. CENTRIFUGAL SEPARATOR, for removing oil fromiron chips and turnings. The iron pan A is fixed to the spindle and … pulley. The unequal load-ing of the pan is balancedby the elastic swivelled boxB, held in a central positionby springs. A cover withfelted edge closes the top ofthe pan. The friction stopC acts as a brake to stopthe motion of the pan. 1376. CLOSURE OF ROLLERS by tra-versing the angular slots…
Mechanical movements
