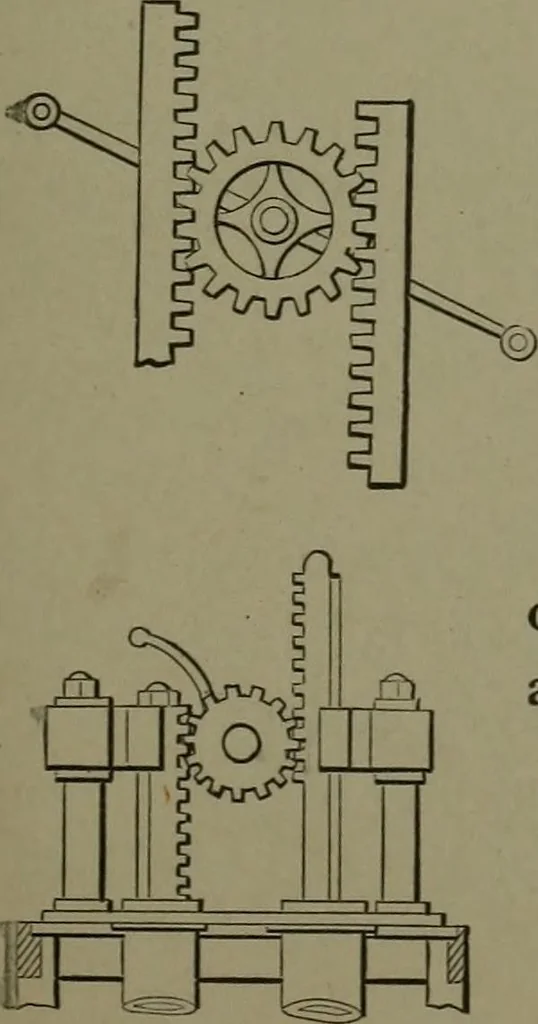

884. RACK MOTION used for air pumps.The racks are directly connected with the pis-tons of a single-acting air or other pump, andoperated by a brake lever. 885. AIR-PUMP MOVEMENT.—Two racksconnected directly with the pistons, with guides,are operated by a pinion and lever. 23© GEARING.Mechanical movements
