Mechanical movements, powers, devices and appliances (1901)
Hiscox, Gardner Dexter, 1822?-1908 · New York, N. W. Henley & company · leaf 257

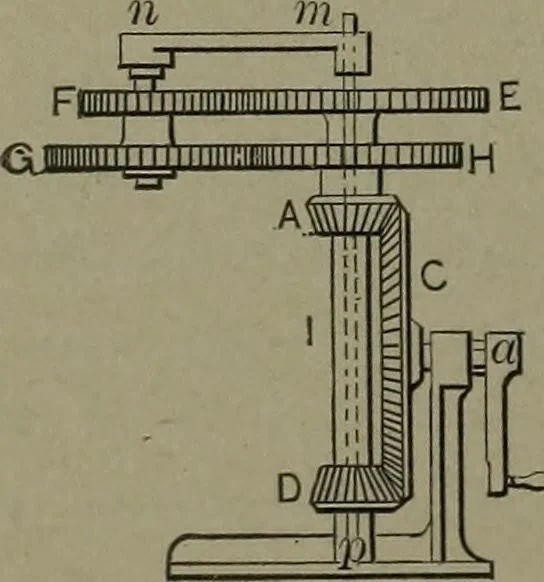

984. HIGH-SPEED EPICYCLIC TRAIN. — Bevel gear C is the driver; //z / is a fixedshaft. Bevel pinion D and spur gear E are fixedon a hollow shaft. Bevel pinion A and spur gearH are fixed on a hollow shaft, revolving on thehollow shaft I. The arm m n revolves freely onthe fixed shaft m p. The spur…
