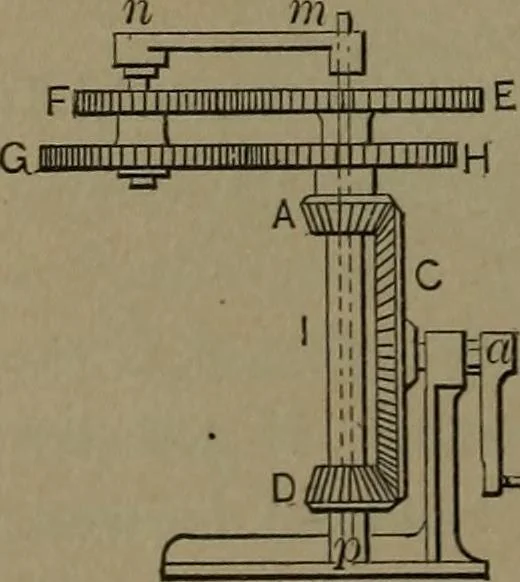

984. HIGH-SPEED EPICYCLIC TRAIN.— Bevel gear C is the driver; in / is a fixedshaft. Bevel pinion D and spur gear E are fixedon a hollow shaft. Bevel pinion A and spur gearH are fixed on a hollow shaft, revolving on thehollow shaft I. The arm m n revolves freely onthe fixed shaft m p. The spur…
