Mechanical movements, powers, devices and appliances (1901)
Hiscox, Gardner Dexter, 1822?-1908 · New York, N. W. Henley & company · leaf 269

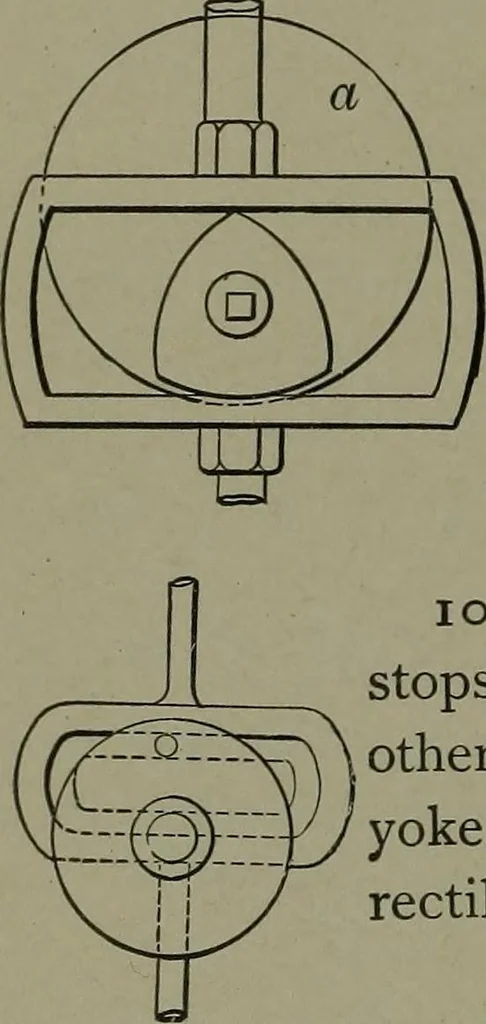

1034. TRIANGULAR CURVED ECCENTRIC,which by its pecuHar form makes a stop motion ateach half-revolution of the cam, for any portion of thestroke, according to the length of the concentric portionof the cam. … 1035. TRIANGULAR ECCENTRIC forproducing a stop motion at each half-revolutionof the face plate a, by the proportional peripherallength of the outer curve of the triangular cam.Used on a French engine. 1036. RECIPROCATING MOTION with fourstops, two of which are of longer duration than theothers. A…
Mechanical movements
