Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 270

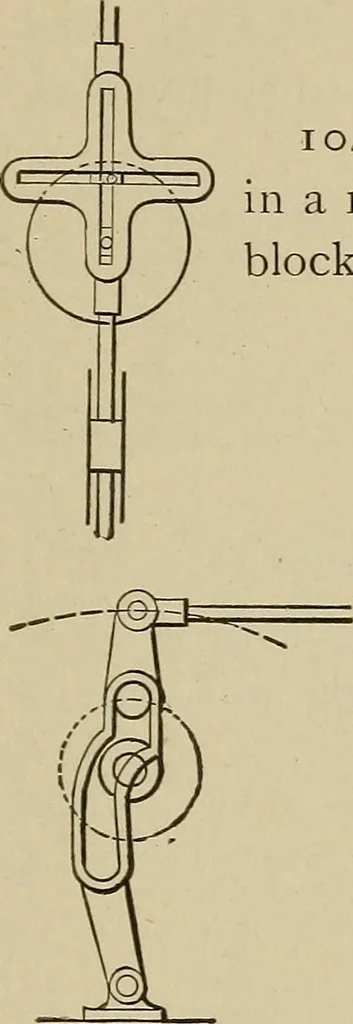

^. 1039. SLOTTED YOKE CRANK MOTION,producing rectilinear motion of piston rod from acrank dispensing with a connecting rod. … 1040. TRAMMEL GEAR.—The slotted cross movesin a right line astride the shaft, while the crank pin in ablock moves in the cross slot. 1041. SLOTTED LEVER MOTION from a crankpin. A variety of motions and stop motions may bemade with this class of lever. a^
Mechanical movements
