Mechanical movements, powers, devices and appliances (1901)
Hiscox, Gardner Dexter, 1822?-1908 · New York, N. W. Henley & company · leaf 336

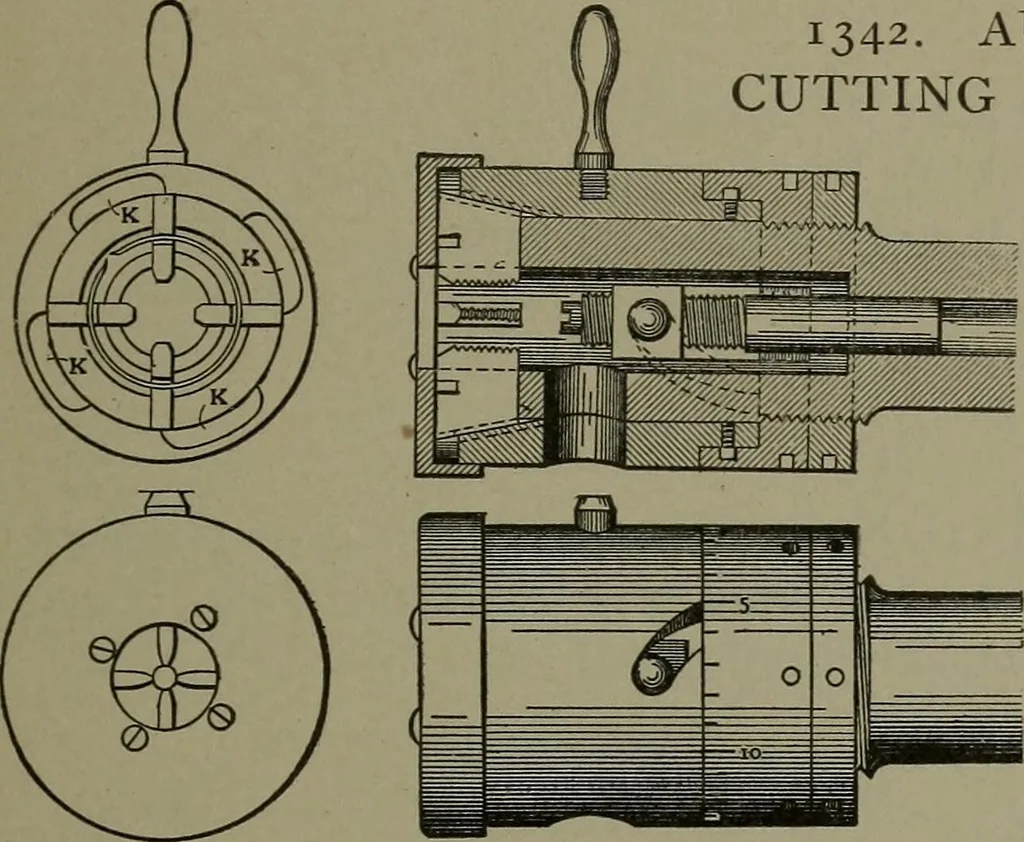

pLJ-l 1341. WABBLE SAW, for cutting dovetail andrabbet grooves. MILl. AND FACTORY APPLIANCES. 327 … 1342. AUTOMATIC SCREW-CUTTING DIE. — The outsideshell is movable on theinner shell, which holdsthe cutters in slots. By-throwing the handleover, the cutters are re-leased from the screw*The centre pin, nut, andslot pin is the automaticrelease by contact withthe screw, which pushesback the slot pin…
