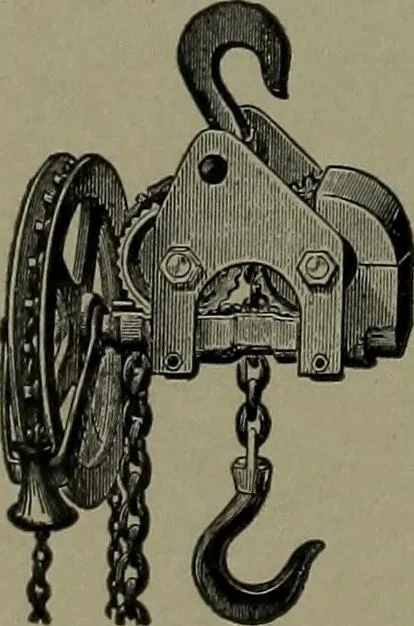

1414. DIFFERENTIAL CHAIN-PULLEYBLOCK.—The chain sprockets, one on each side ofthe gear drum, run in different directions, allowing thesurplus chain to hang between the draft chains. Aneccentric on the hand-wheel shaft rolls a loose pinionaround the discs, causing them to move in oppositedirections… … 1415. DOUBLE SCREW-GEAR HOIST. —A right-and-left screw turns the chain sprockets in meshwith the lifting chain. Box & Co. model.
