Mechanical movements, powers, devices and appliances (1901)
Hiscox, Gardner Dexter, 1822?-1908 · New York, N. W. Henley & company · leaf 385

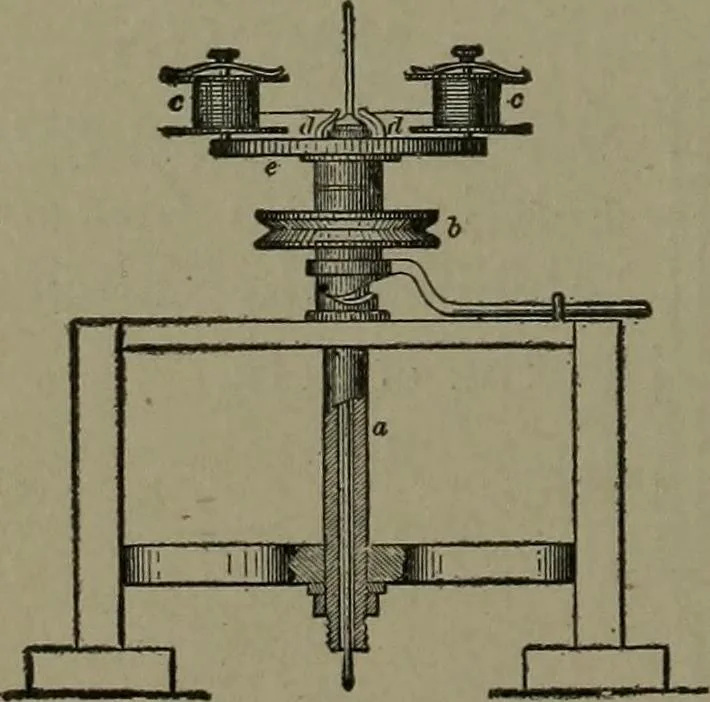

. WIRE-DRAWING MACHINE. a^ the reel. b^ draw plate. <r, power drum, operated by gearbeneath the bench. When the wireis all wound on the drum it ischanged to the reel and drawn ina reverse direction. … 1558. WIRE-COVERING MACHINE. —The wire is passed through a hollow re-volving spindle a^ having a small longitu-dinal motion from a vibrating cam to lapthe threads. The face plate revolving withthe spindle carries two or more spools, <r, c^with guide eyes, d, d^ vibrating with thespindle.…
