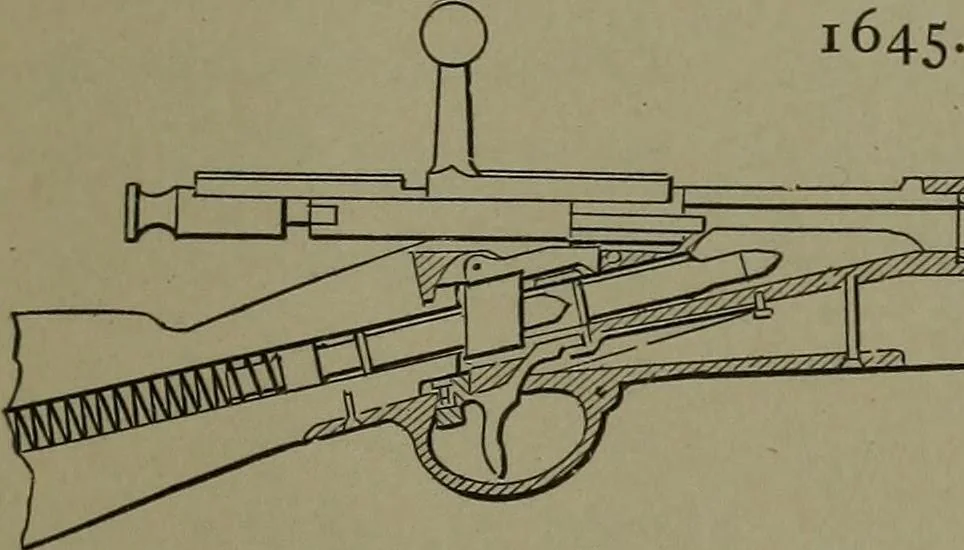

A breech block, operated by ahandle, is pulled back to-allow the cartridge to becharged by hand, when thebreech and the block arelocked. The hammer strikesa firing pin within the breech,block. REMINGTON MAGAZINE GUN. — The magazine isplaced in the stock under thebarrel. The cartridge is liftedby a… … HOTCHKISS MAGAZINE GUN.—The reserve cartridges ^^g are carried in the gun stock ^j and forwarded by a light spring. — The breech bolt draws back by the handle, when the cartridge is raised and pushed forward :^^ into the barrel. .Centre pin spring hammer.
