Mechanical movements, powers, devices and appliances (1901)
Hiscox, Gardner Dexter, 1822?-1908 · New York, N. W. Henley & company · leaf 46

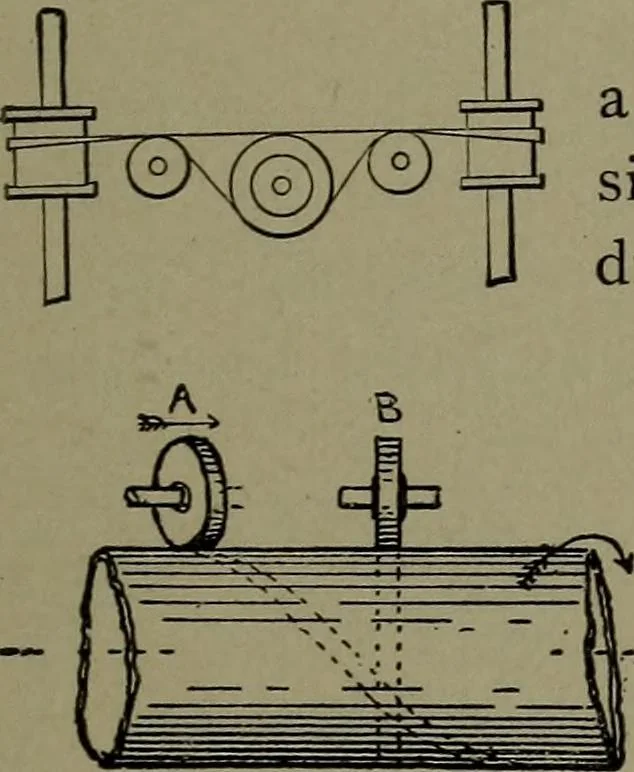

100. VARIABLEGEARING. SPEED OR CONE i -av^ c d … <7, tight pulley on outside hollow shaft. /;, tight pulley on inside hollow shaft. c, tight pulley on inner or solid shaft. dy loose pulley on solid shaft. a b c, differential spur gears for three speeds. loi. TRANSMISSION OF POWER froma horizontal shaft to two vertical spindles. Asingle belt,…
