Mechanical movements, powers, devices and appliances (1901)
Hiscox, Gardner Dexter, 1822?-1908 · New York, N. W. Henley & company · leaf 70

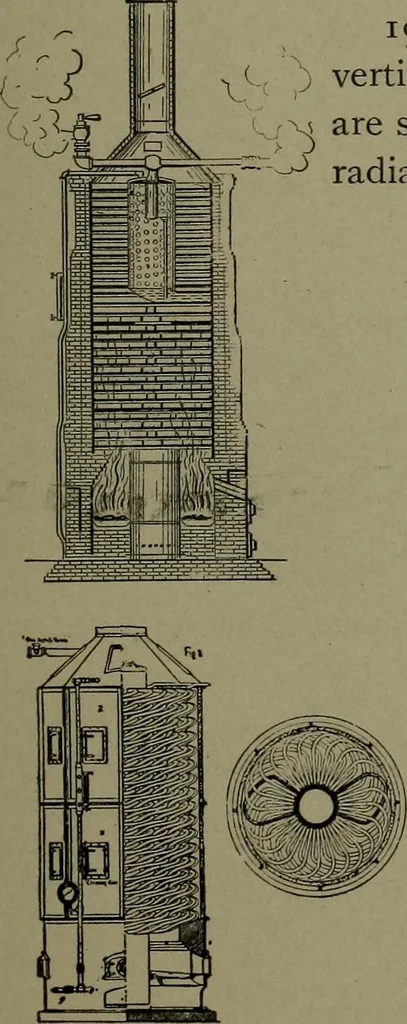

190. YARROW WATER TUBE BOILER. —Inclined sections of straight tubes from water-headers each side of the hre grate to a large steamdrmn above. Iron casing lined with fire tile.This design is for a marine boiler. 191. BOYERS WATERTUBE BOILER. —Furnacewalls are coils of pipe. Coilsover the fire are… … 192. HAZELTON BOILER.—A centralvertical drum in which tubes, with closed ends,rxs are screwed radially. The grate is beneath the^---^ j-a(iial tubes and around the base of the drum. 193. CLIMAX BOILER.—A centralvertical water and steam drum, with benttubes expanded in it, and inclined to…
Mechanical movements
