Mechanical movements, powers, devices and appliances (1901)
Hiscox, Gardner Dexter, 1822?-1908 · New York, N. W. Henley & company · leaf 71

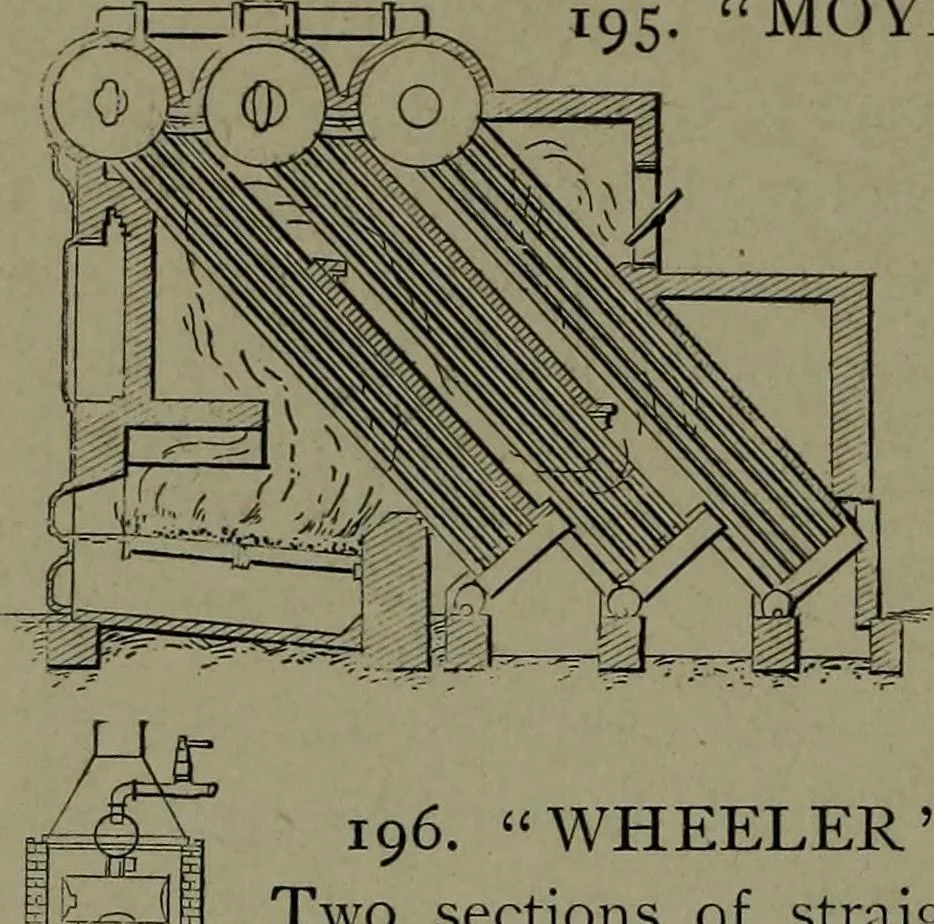

rtical water and steam drum, with benttubes expanded in it, and inclined to facili-tate circulation, 194. Section showing bent tubes. 62 STEAM POWER. MOYES WATER TUBE BOILER.— The inclined tubes are in threegroups, set in three steam drumsabove and three water-heads be-low. Partitions divide the…
Mechanical movements
