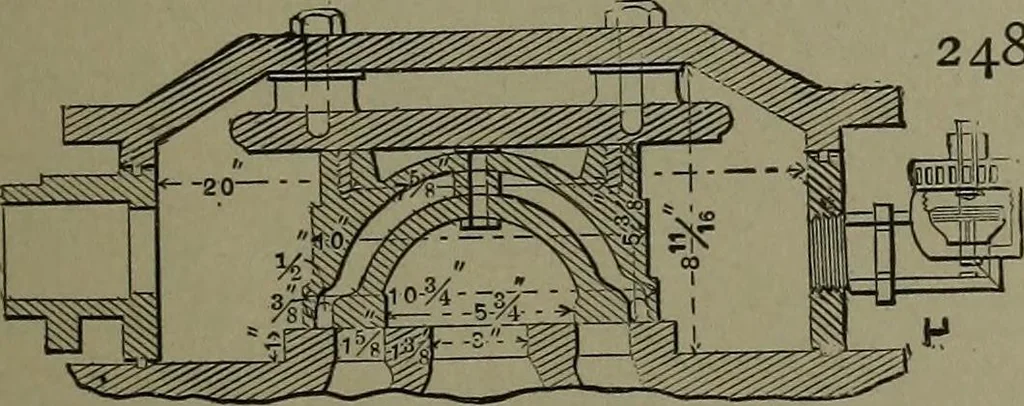

247. BALANCED SLIDE VALVE, Buchanan & Richters patent. The arm B carries a roller in the curved slot of the supporting piece D. The ?^??^ pressure is relieved by the nut and screw in the cover. … 248. RICHARDSON-ALLEN BALANCED SLIDE VALVE. S| —The valve slides under anadjustable plate fixed to thesteam chest cover, and is bal-anced by a recess in the back of the valve that is open to the ex-haust port. 249. BALANCED THROTTLE VALVE, withdirect governor connection.
