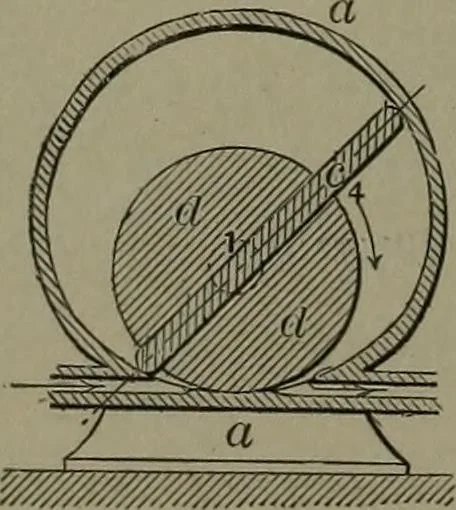

325. COCHRANE ROTARY ENGINE.— A wing piston rotating around the central axis of anouter shell or cylinder. A hollow cylinder of small-er diameter is pivoted eccentric to the wing axis tokeep one side in contact with the shell. The steam .W -^z-/ pressure revolves the wing and shaft Avith a force… … 326. FRANCHOT ROTARY ENGINE.—A slotted concentric cylinder carries a con-tinuous solid wing across and in contact with theinterior surface of an ovoid shell, shaped for ex-act diameter in all directions on the eccentricaxis of revo ution. STEAM POWER. 9
