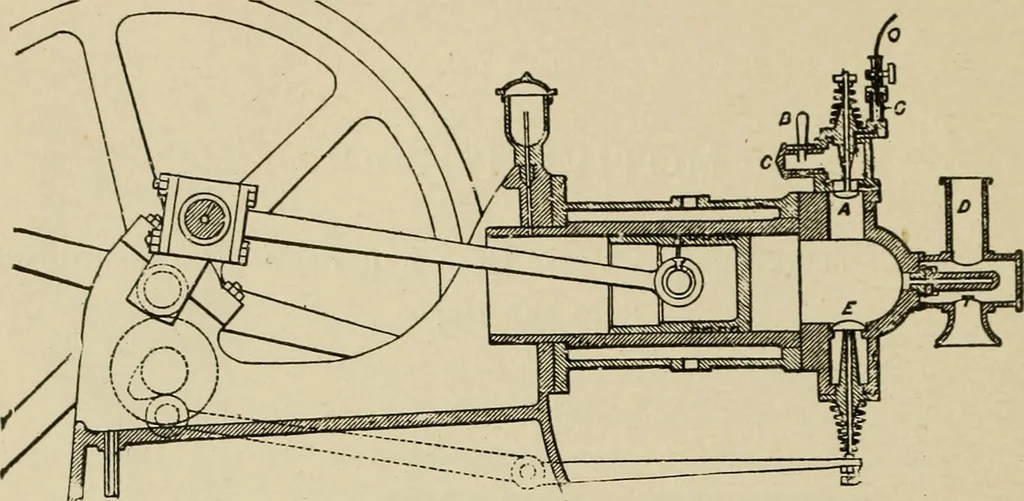

423. SECTIONAL PLAN OF A GASOLINE ENGINE.— Four-cycle type, with exhaust port opened by the piston at the endof the stroke, and continued exhaust through an annular valve aroundthe inlet valve. The charge is heated and vaporized in the valvechamber by the exhaust. Olin model. ii8 MOTIVE POWER. … 424. SIMPLE GAS OR GASOLINE ENGINE.—A, inletvalve ; E, exhaust valve; gasoline enters by gravity at G, regulatedby a faucet. Air enters at B by the suction of the piston, atomizingthe gasoline as it drops into the air chamber. The tube igniter isheated by a gasoline burner beneath the bell mouth.…
