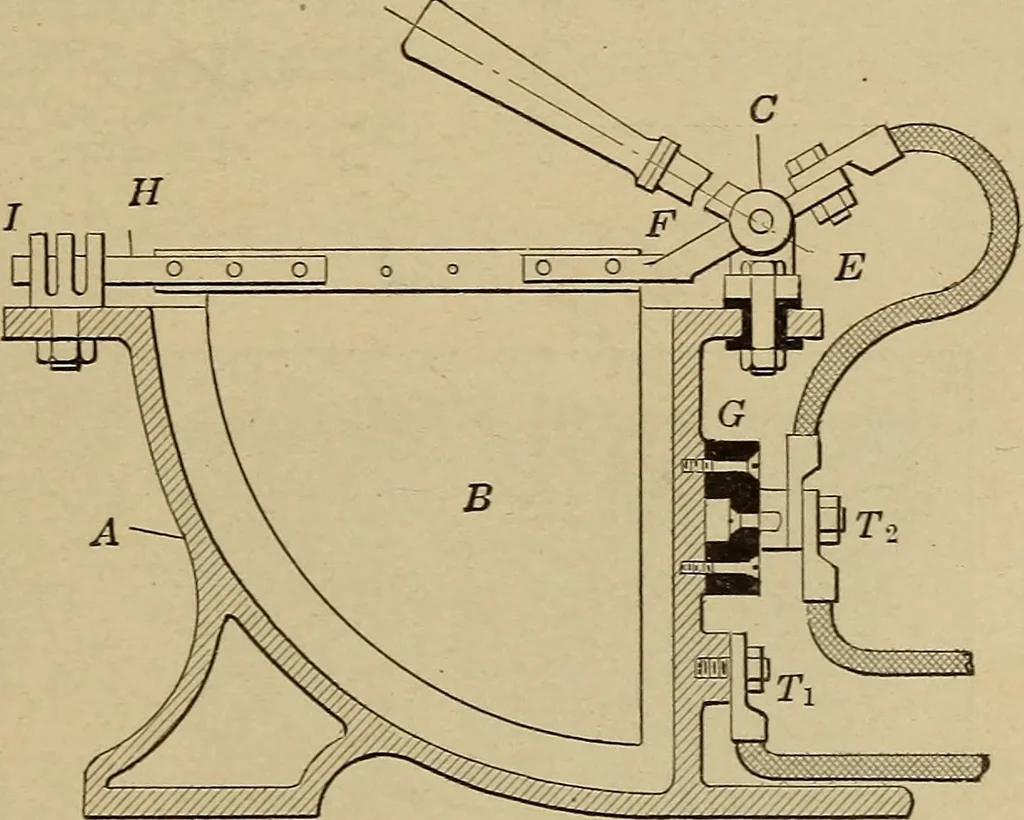

tion such as asbestos. The resistance of such a pile decreases asthe mechanical pressure between the ends increases, because thecontact between adjacent discs improves. In the type of rheo-stat shown in Fig. 36 the pressure is applied by turning the hand-wheel D and is communicated to the carbon… … Fig. 37.—Liquid rheostat. 37. Liquid Rheostats.—Such a rheostat is shown in Fig. 37and consists of a cast-iron trough A which contains a solution ofcaustic soda or some similar material which does not attack iron,and an iron plate B which is insulated from the tank as shown at Eand which dips into…
