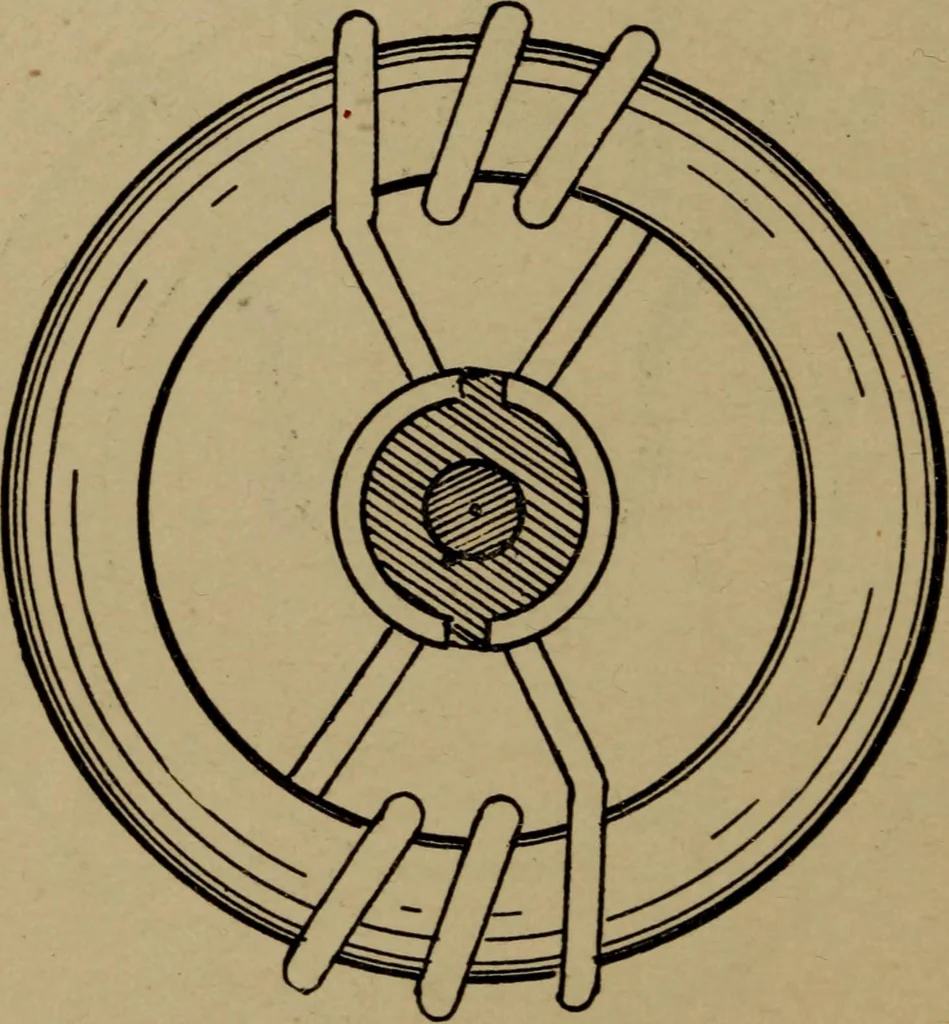

he current of the other coil, whicn addswhatever current it may be generating, to that of theoriginal coil. In this case, the amounts generated in 30 THKORY OF DYNAMOS. two coils will be equal, for when the coil on one side ofthe ring is generating current, the coil diametrically op-posite must… … I^IGURK II.—RING ARMATURE.—TWO :OII.SIN MUI.TIPI.E. moving past the line C-D, fig. 8, they generate no current,since they cut practically no lines of magnetism, andthat if two coils were placed on the ring so as to bemoving past the line, A—B, they would be generating amaximum amount of current. By…
