Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 193

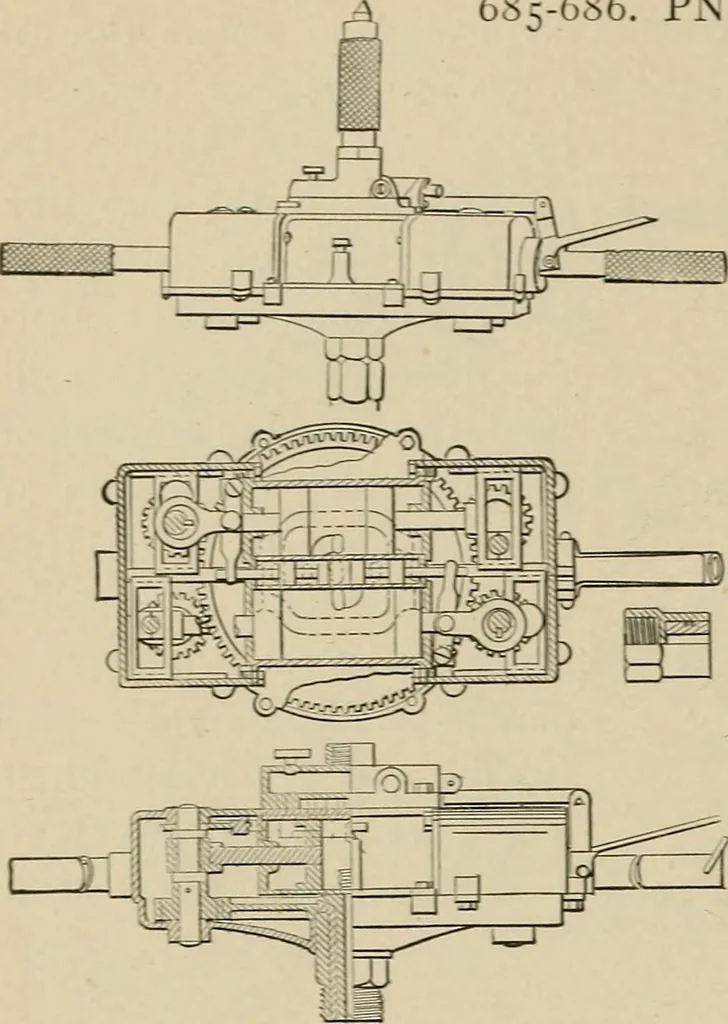

i84 AIR POWER APPLIANCES. … 685-686. PNEUMATIC MOTOR DRILLSTOCK, operated by four pis-ions in two cylinders, double-acting. The piston rods havea jointed connection to camcranks on the pinion shafts.The piston valves are oper-ated by levers pivoted to op-posite piston rods, as shown inthe horizontal section, Xo. 686.3 The…
Mechanical movements
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
