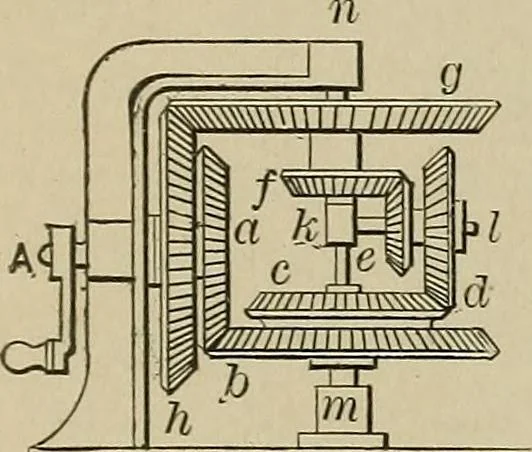

but illustrating thechanged conditions of gear motion. Gears a andh are fixed to the crank shaft. Gears g and fare fixed to a hollow shaft turning on the shaft11 in. Gears ^, h are fixed on a hollow shaft and turn on shaft n ;;z. The arm ^ / is fast on and supported by shaft 71 m. Gears e, d are…
