Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 261

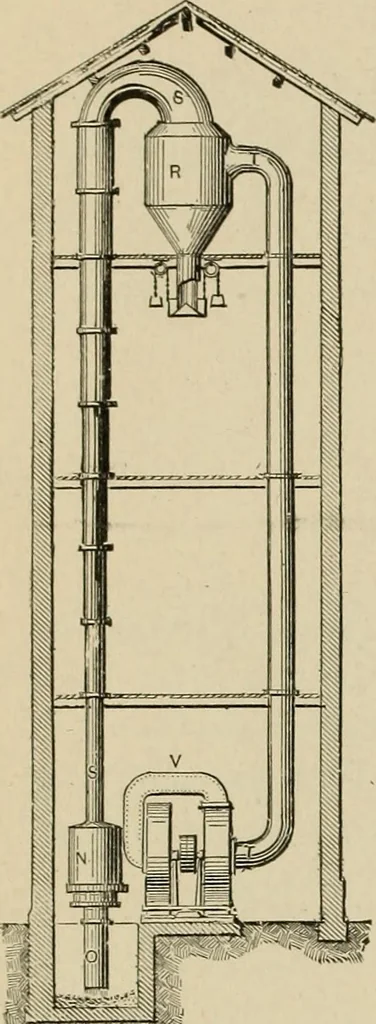

992^. CHANGEABLE MOTIONGEAR.—Two or more changes of motionby bevel gear may be made by moving apinion along a feathered shaft at an anglewith the change gear shaft. 25- GKARING. … 992r. PNEUMATIC GRAIN ELE-VATOR.—V is a compound suctionfan; T, pipe to receiver R; R, areceiver with a wire gauze screento allow, dust to be separated from thegrain and carried off through the fan;S, lifting pipe of conical form; N,regulator with a rubber diaphragm toallow the foot nozzle O to…
Mechanical movements
