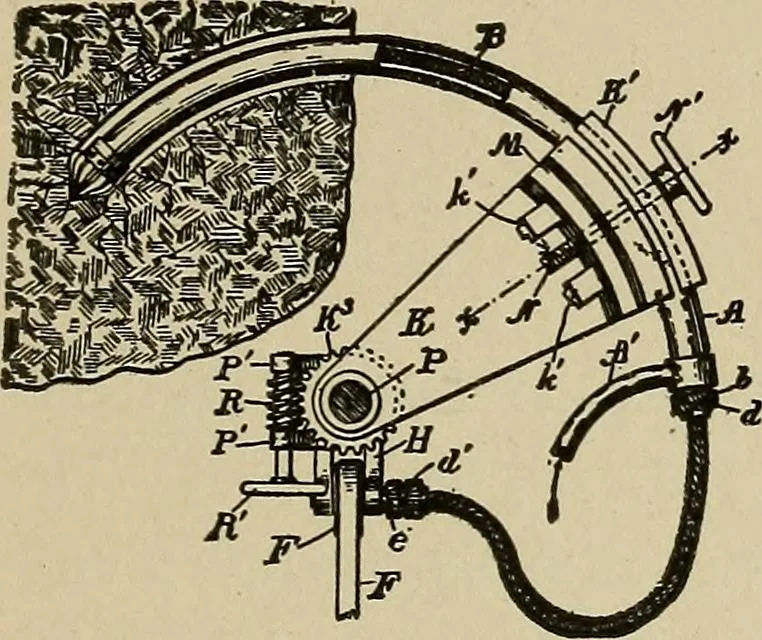

An illustration from Mechanical movements, powers, devices and appliances;, 1903, leaf 308 — 1204. LINK CHAIN CUTTER, used incoal-cutting machines. … 1205. DRILL FOR CURVEDHOLES, used in coal mining. Thedrill is on the end of a curved tube, andis driven by a flexible shaft. The tubeis fed forward by a pivoted arm andworm gear.
