Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 331

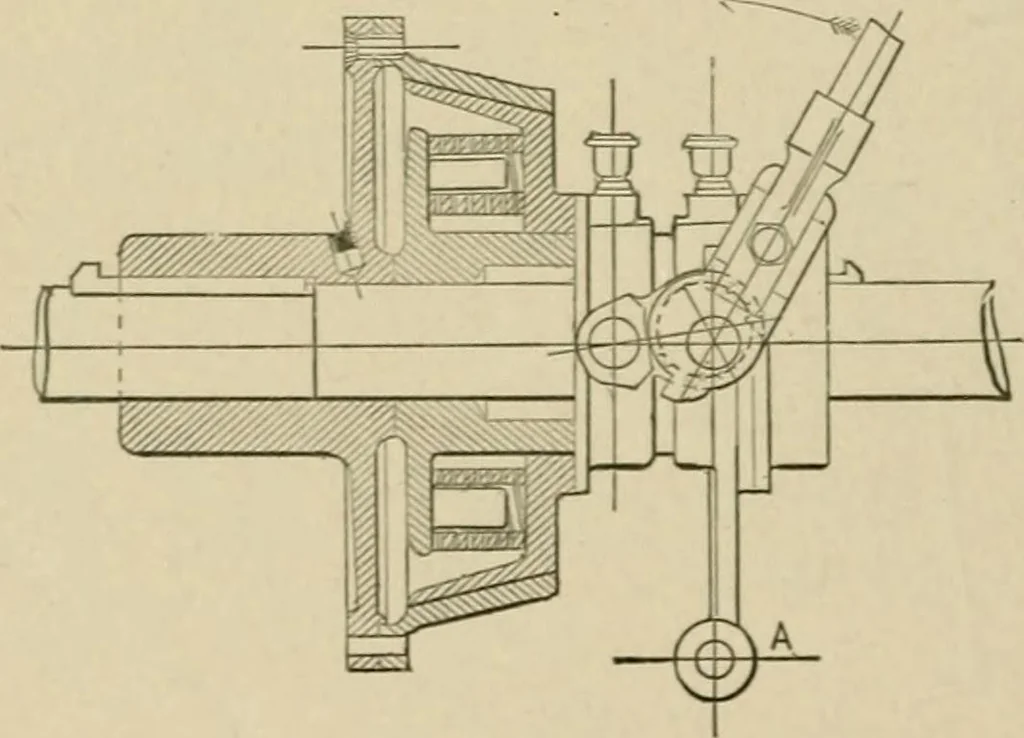

. PIN CLUTCH.—The pin plate isfast on the shaft. The hole plate slides on afeather, and is operated by a bell-crank Y-Jeverin a hub slot. 1313. FRICTION PIN CLUTCH.—A or B may be the driving shaft; ^ is afriction band that slips to prevent shockwhen the pins are thrown into contactwith it. 1314.… … 1316. FRICTION CLUTCH BEVELGEAR.—A A is a driving shaft extendedthrough the gear hubs ; gear a is fast onthe shaft; gear b is loose on the shaft, witha friction clutch fixed in position by a leverextension not shown. Clutch is tightenedby the screw handle y, when the gear e c ro-tates to drive gear…
Mechanical movements
