Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 76

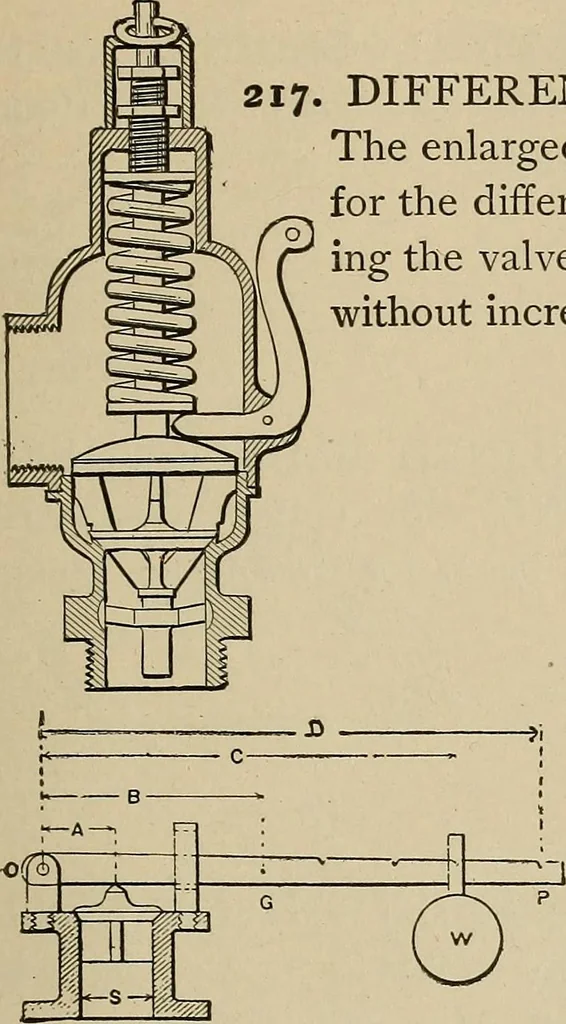

216. POP SAFETY VALVE.—The Lun-kenheimer, an enlarged lip disc above the valvedisc, equalizes the increased tension of the springwhen the valve opens. STEAM POWER. 67 … DIFFERENTIAL SEAT SAFETY VALVE.— The enlarged area of the upper valve compensatesfor the differential tension of the spring upon open-ing the valve, thus causing the valve to open widewithout increase of boiler pressure. 218. SAFETY VALVE.—Lever is of the third order. A, Short lever;B, centre of…
Mechanical movements
