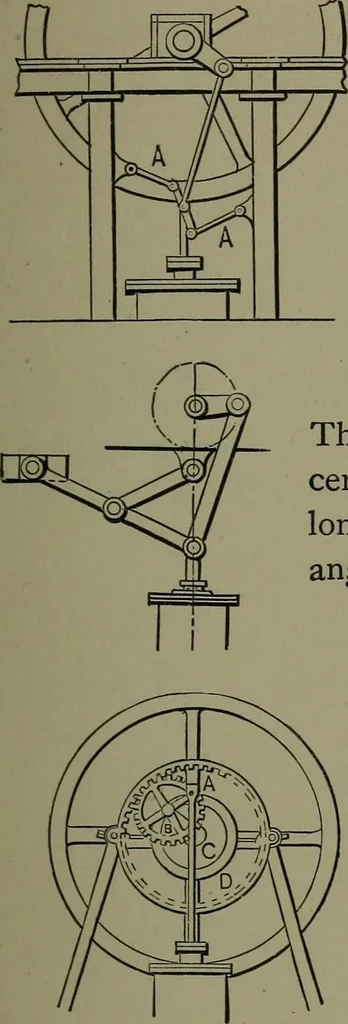

ing engine. ■ The radius bar, A, F, is pivotedto the frame on the centre line and at rightangles to the slot, B. A, C and A, F are of equal length. A, B and A, C are of equal length. 282. PARALLEL MOTION by a rockingbeam. A, E and A, C are equal when E ispivoted in the centre line of motion of… … 284. PARALLEL MOTION for a ver-tical engine. A, A, radius bars pivoted toengine frame opposite to the middle ofstroke. 285. PARALLEL MOTION for an engine.The radius bars are of equal lengths from thecentre line of the engine and sliding pivot of thelong bar. Both fixed and sliding pivots at…
