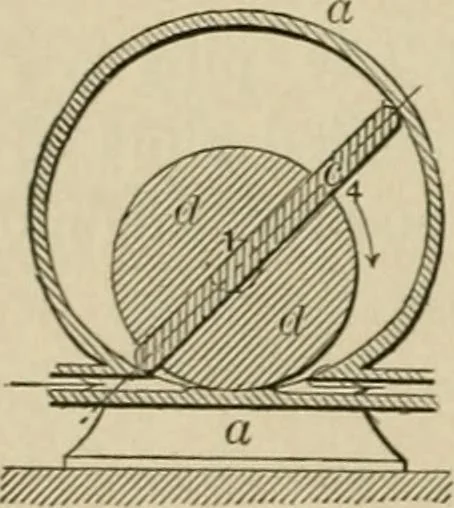

325. COCHRANE ROTARY ENGINE.— A wing piston rotating around the central axis of anouter shell or cylinder. A hollow cylinder of small-er diameter is pivoted eccentric to the Ming axis tokeep one side in contact with the shell. The steampressure revolves the wing and shaft with a forcedue to the… … 326, FRANCHOT ROTARY ENGINE. —A slotted concentric cylinder carries a con-tinuous solid wing across and in contact with theinterior surface of an ovoid shell, shaped for ex-act diameter in all directions on the eccentricaxis of revo ution. STEAM POWER. 9
