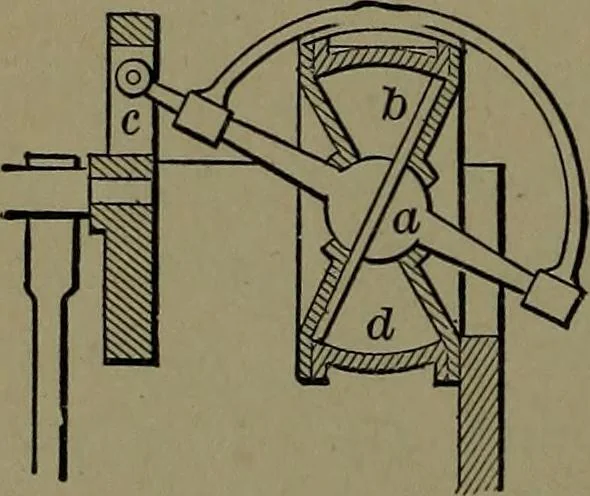

352. DAVIES DISC ENGINE.—Adisc, b, is fixed to an oscillating shaft, a^which swings in a circuit pivoted in the disccrank, c. The cylinder heads are cones inthe apex of which the ball bearing of theshaft oscillates. The outer shell of the cyl-inder, d, is spherical over which the disc moves. Steam…
