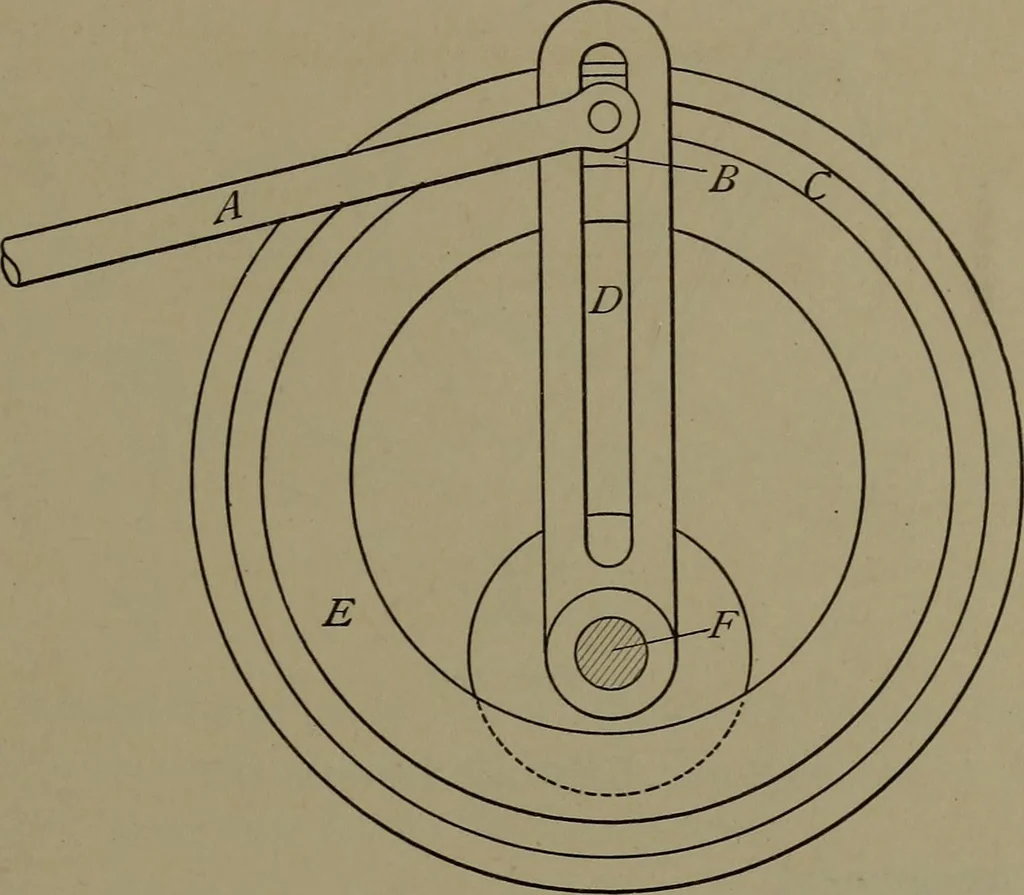

Fig. 17 175. Assignment.— Design the constant diameter cam, A, as shown, under the fol-lowing conditions: follower to move with harmonic motionfrom extreme right to left; to return one-half the distance byuniform motion; to remain at rest for one-sixth the revolution ofthe cam, and to return to… … Fig. 179.Quick Return Mechanism 176. Assignment.— Length of lever, A (18-24) in. External diam. of circular slot (8-10) in. Distance from center of rotating shaft, F, to center of circularslot (4-10) in. Plot velocity-time diagram of crosshead at end of arm A, which movesalong a horizontal Une…
