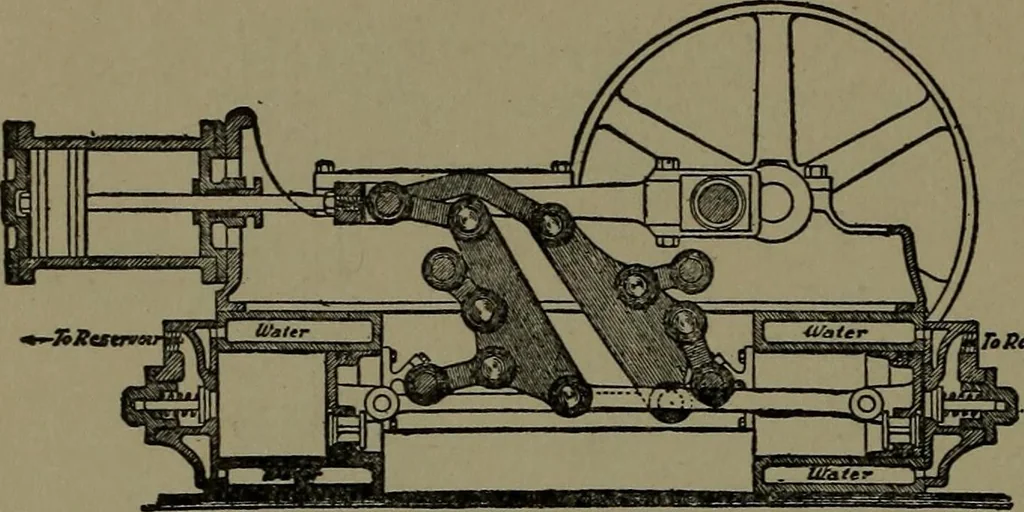

piston, and is forced through the valve D and pipe to the high-pressureinlet valve G; it is further compressed and delivered through the valveA, and passage L. Both pistons are single, acting in opposite directions. 174- AIR POWER APPLIANCES, … 647. DUPLEXAIR COMPRES-SOR, with parallelmotion beams totwo single-acting ailcylinders from a.double-acting steamcylinder. N. Y.Air Brake model.
