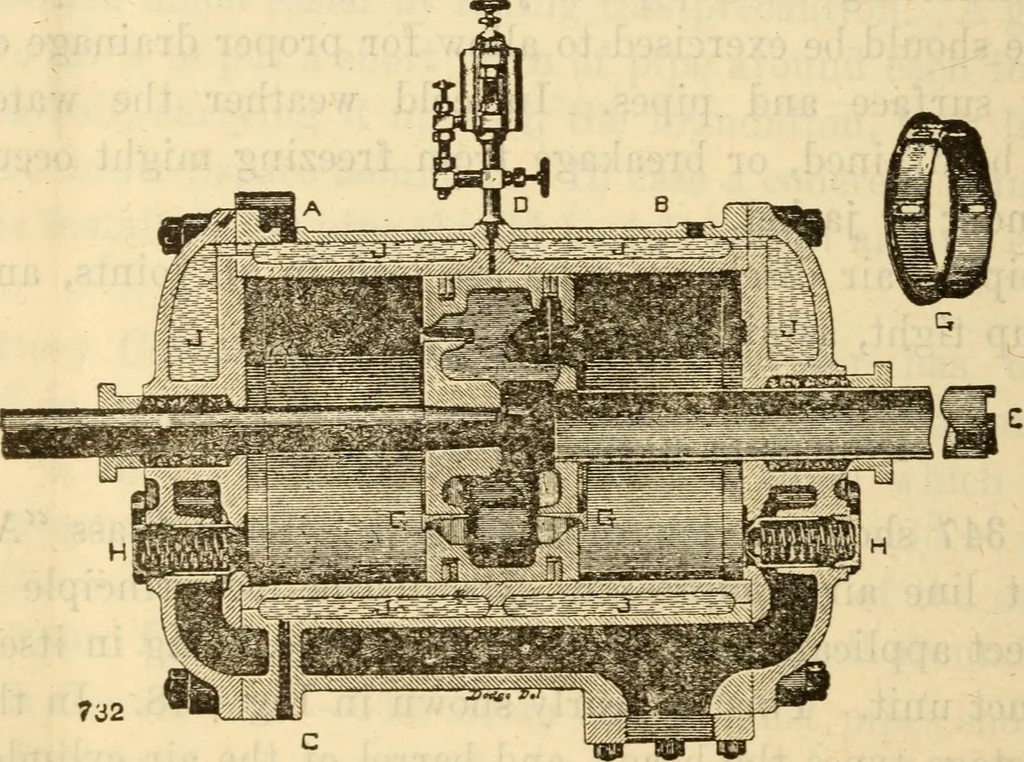

l construction of this type of air compressors^ 834 Steam Engineering each part being numbered and the designation of the partsgiven in the caption. The Meyer cut-off valve gear is clearly sliown in thesteam end^ and the Ingersoll-Sargeant piston inlet valvesare shown in the air cylinder^ an… … Fig. 350ixgersoll-sergeant piston inlet valve cylinder The standard governor for all Class ^^A compressorsis the type known as the Air-BalV Governor. Unloader and Regulator.—The function of the unloaderand regulator is to take the load off the air pistonwhen the pressure reaches the desired point,…
