Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 231

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 231

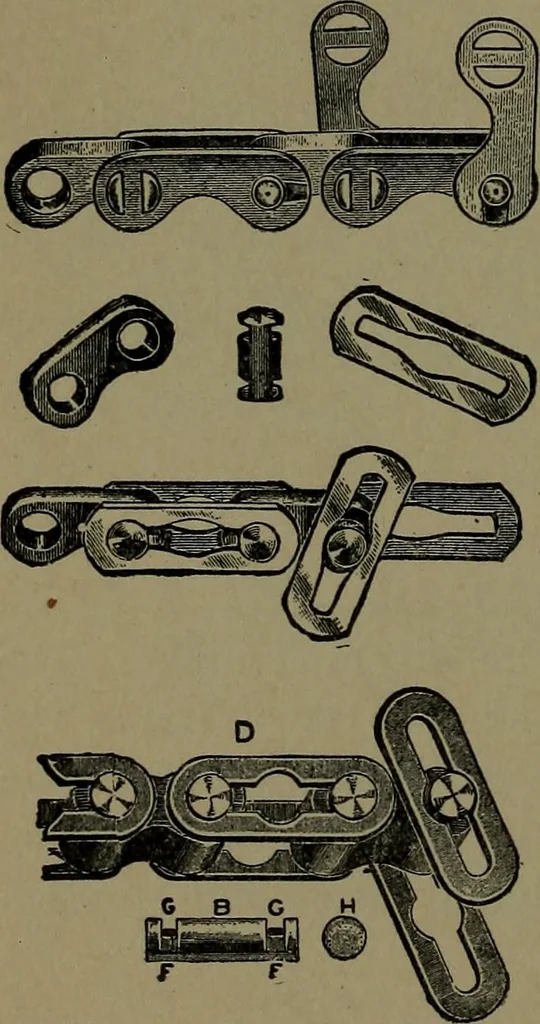

can be taken apartby turning the links at right angles tothe run of the chain. 872. DETACHABLE LINK CHAINfor bicycles. The pin can be slippedout by drawing the links together. Thegrooves in the pins lock in the narrowslot ends of the links. 873. Centre link pin and slip link. 874. DETACHABLE LINK…

Mechanical movements
