Woolen and worsted finishing; a practical manual of instruction in the methods and machinery used in finishing woolen and worsted goods in general, and the processes involved in the special treatment of all types of standard fabrics (1909)
American School of Correspondence, Timmermann, John F · Chicago, American School of Correspondence · leaf 140

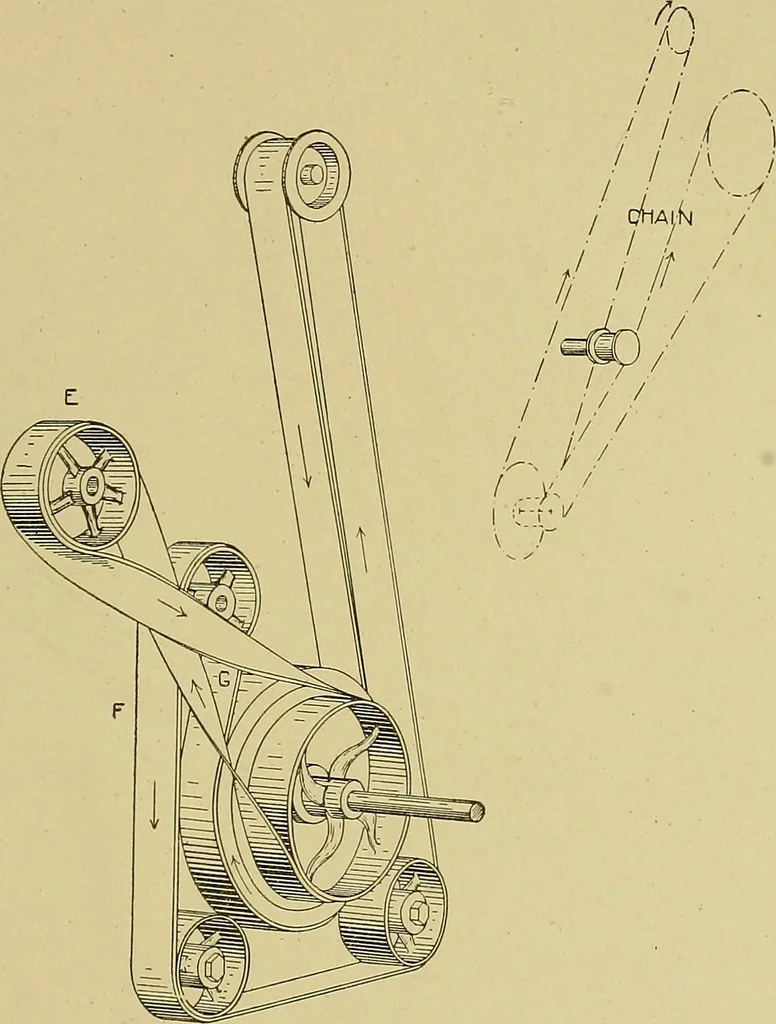

5 ^a: P^ WOOLEN AND WOKSTED FINISHING 115 to stand up straight. The brush G is a flock brush which cleansthe back of the cloth from threads and flocks before it goes overthe rest H, where the fly blade I revolving against the stationaryknife Y cuts off the nap from the face of the goods. The screw … Pig. 39. Right Side Belting. X adjusts the cutting edge of the blades to or from the rest sothat the nap may be clipped to the proper depth. The blades maybe swung back from the rest around the pivot W by lifting on thehandle Y, this being necessary when a sewing, uniting two cuts ofcloth, passes…
Woolen and worsted manufacture · Textile finishing
