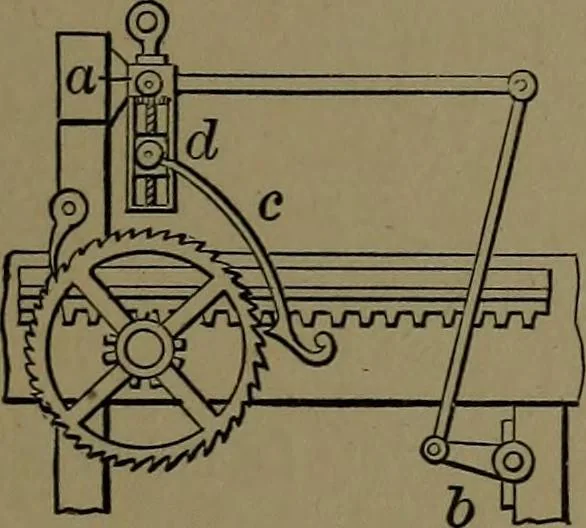

TROKE by a fixed and a movable) ( ) li rack. The crank rod connects with a pinion,which rolls on a fixed rack, carrying a recipro-cating rack to double the distance of the crank throw. S8^. SAWMILL FEED.—By the revolu-tion or rocking of the crank 3, the adjustablebell-crank lever a is vibrated,…
