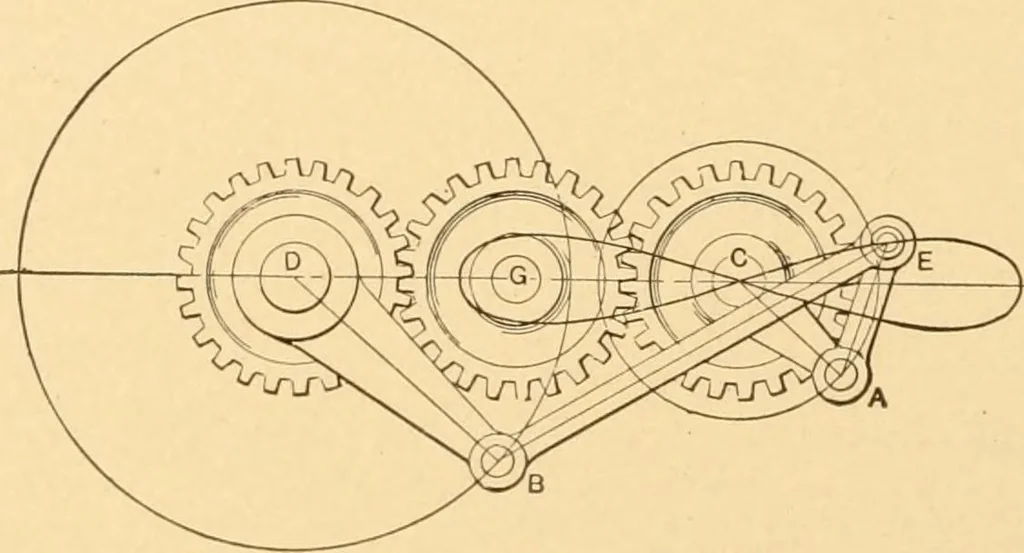

606. ELLIPTIC LINKAGE from circular gears. Three equalgears D, G, C, with the linkages A, E, B. There are many variationsof this form of gear and link-age in regard to the forms ofcurves which may be produced.Arm B, D, is twice the lengthof arm A, C. Link A, E,is equal to A, C. … GEARING AND GEAR MOTION, ETC. 235
