Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 259

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 259

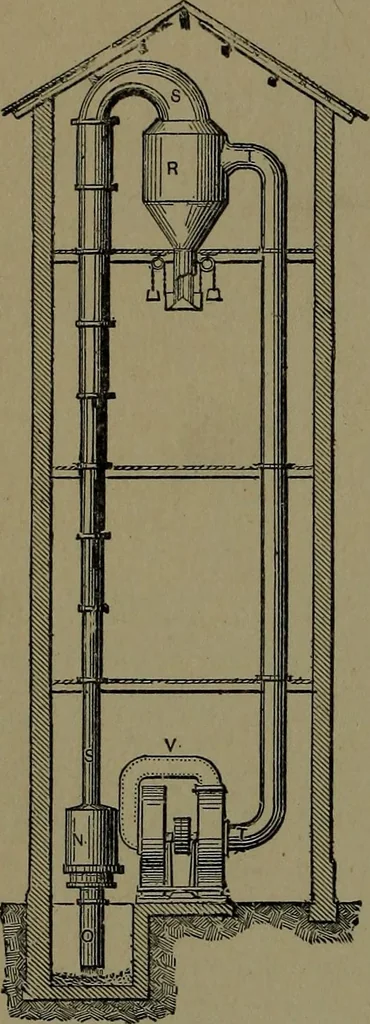

992J. CHANGEABLE MOTIONGEAR.—Two or more changes of motionby bevel gear may be made by moving apinion along a feathered shaft at an anglewith the change gear shaft. 252 GEARING. … 992^. PNEUMATIC GRAIN ELE-VATOR.—V is a compound suctionfan; T, pipe to receiver R; R, areceiver with a wire gauze screento allow dust to be separated from thegrain and carried off through the fan;S, lifting pipe of conical form; N,regulator with a rubber diaphragm toallow the foot nozzle O to…
