Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 273

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 273

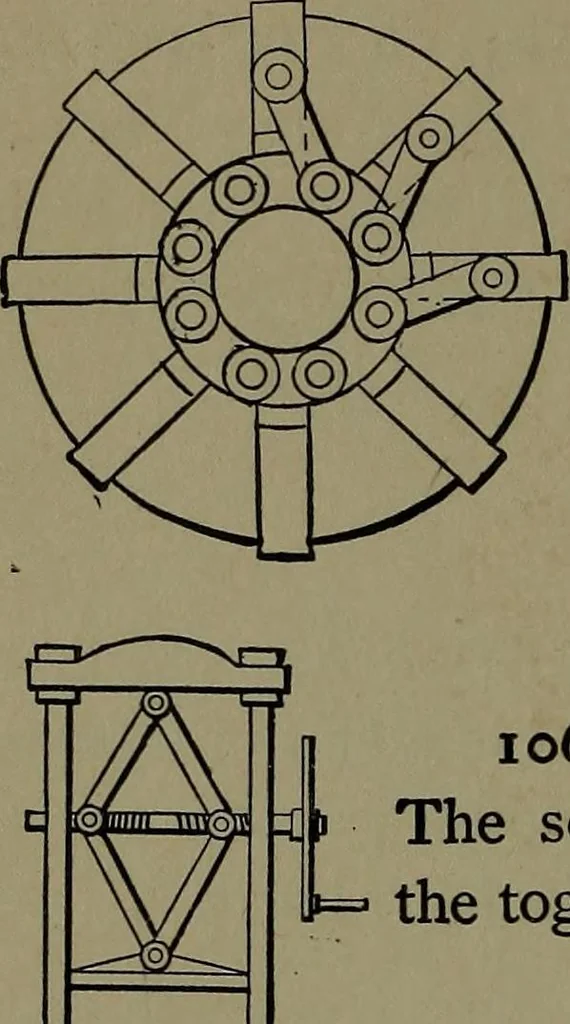

1067. SINGLE TOGGLE ARM LETTER-PRESS.—The arms are drawn together by aright and left screw. 266 MOTION AND DEVICES CONTROLLING MOTION. … 1068. TOGGLE-JOINT CAM MOVE-MENT for throwing out a number of grips atonce by the local movement of the jointedring. 1069. DOUBLE-SCREW TOGGLE PRESS.—The screw has a right- and left-hand thread to drawthe toggle joints together. r—^ V^ &%
