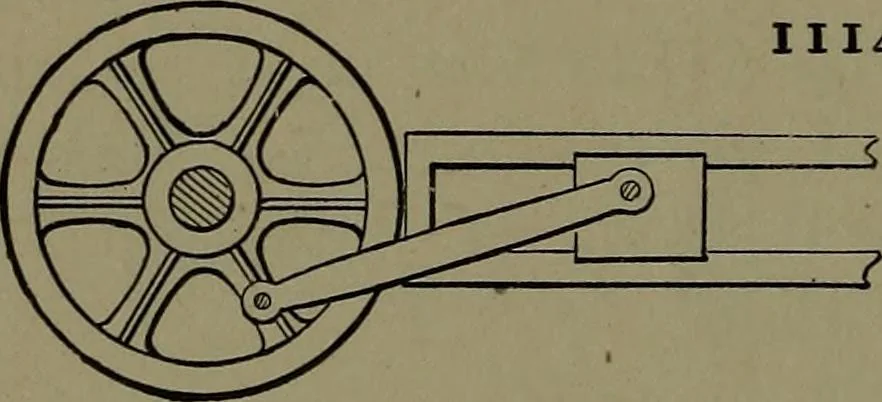

1112. SPRING LATHE-WHEEL CRANK.—The spring A is intended to keep the crank offthe dead centre. A counterbalance weight isalso used for the same purpose. 1113. BROWNELL CRANK MOTION.— The wrist pin is fixed on a tangent slide held in itsforward position by a volute spring attached to theface plate.…
