Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 311

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 311

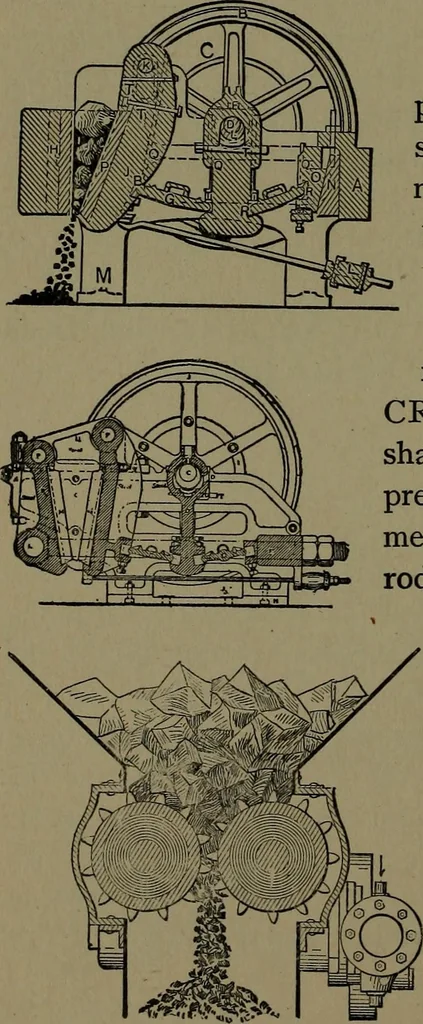

1232. TOGGLE JOINT, for a stone breaker. … 1233. STONE CRUSHER. —Thepower is transmitted from tne drivingshaft by a cam operating a vertical con-necting link and toggle jointo Blake pattern. 1234. BUCHANAN ROCKCRUSHER.—An eccentric on the drivingshaft and toggle arm gives a powerfulpressure to the crusher jaws. The adjust-ment is made by…
