Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 340

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 340

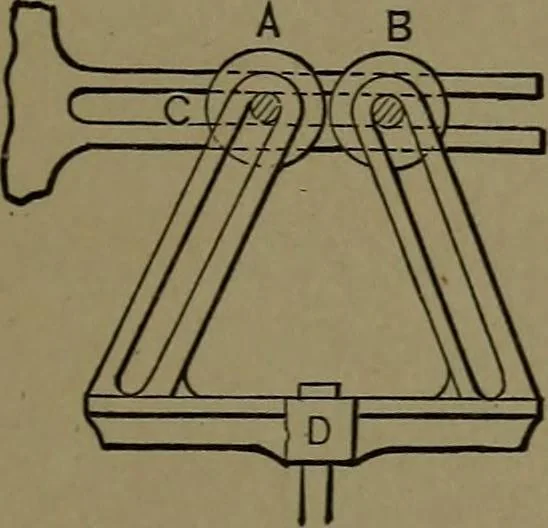

1376. CLOSURE OF ROLLERS by tra- versing the angular slots guiding the rollerbearings. The slot guide C is fixed. Thepiston-rod head D carries the angular slotsthat move the rollers forward and backward. 1377. VIBRATING LIFT.—The revolving drumB lifts the weight W, while the crank-pin connectingrod…
