Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 37

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 37

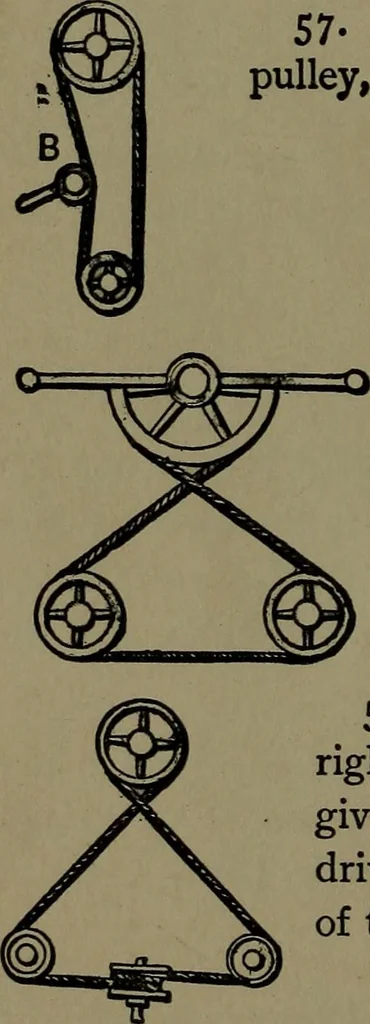

53. STEERING GEAR.—A hand wheel anddrum on a shaft, carrying a rope rove throughguide pulleys and attached to the tiller. 54. JUMPING MOTION given to a weight,or other body, by a pin wheel and bell-cranklever. 30 TRANSMISSION OF POWER. ^ ■A3^ W 55. ROPE SPROCKET WHEEL, several modi-fications of… … 57. ROPE TRANSMISSION, with a tighteningpulley, B. 58. VIBRATORY MOTION to two shafts,transmitted from the rocking of a lever arraand sector.

Mechanical movements

Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
