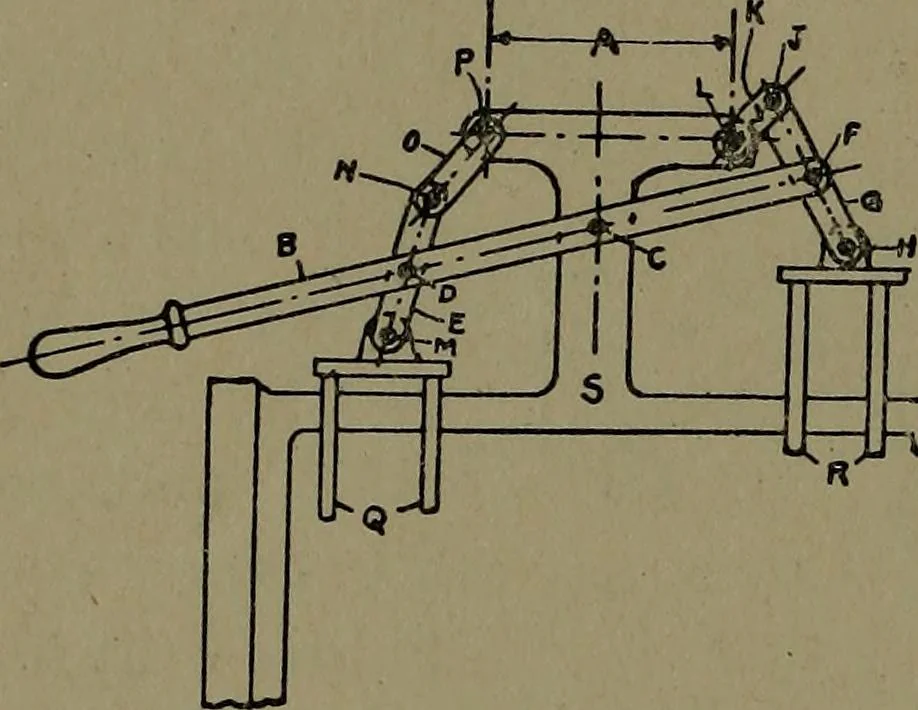

arrying switch contacts Rand guided by holes in frame ^S. Lever K, connected to G at /,is pivoted to frame S 2it L. A equals the length of links G andE. Links K and O are half A. 1660. STRAIGHT LINE MOTION WITH TWOLINKS AND ONE LEVER.—Levers / and K are connected by link L. Lever K is pivoted aj:H…
