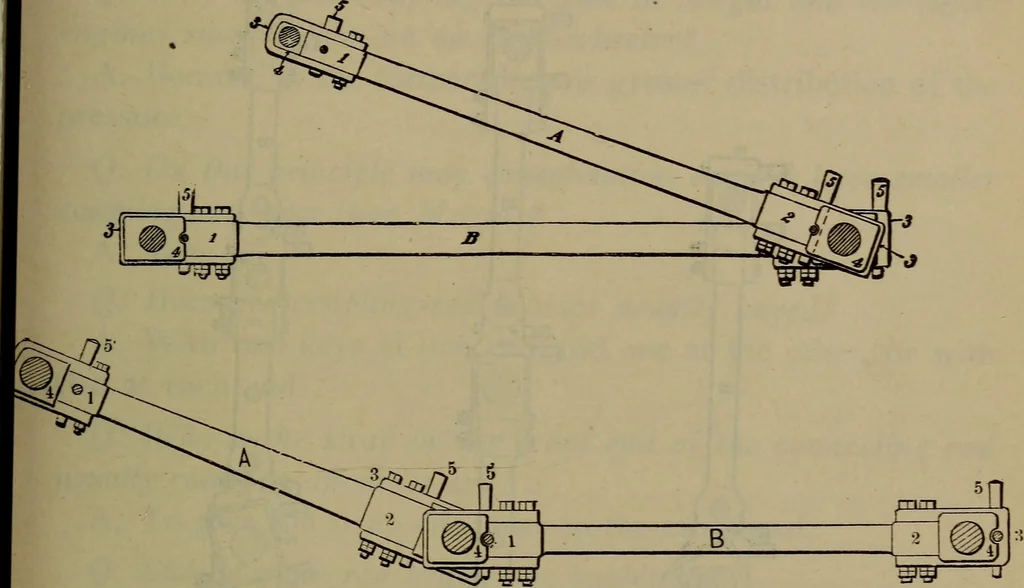

their forward ends they have a separate pin back ofthe crank pin on the big end of the rod immediately beforethem. Q. What are the various relative positions of the rods oneach side? A. Fig. 179 shows the main rod outside the coupling rod;in Fig. 180, it is inside. In Fig. 181, the crosshead is… … Figs. 179 and 180.A. Main Rod. B. Parallel Bar or Coupling Pin. i. Front Stub-end. 2. BackStub-end. 3. Strap. 4. Brass. 5. Key. there are back, second, third and fourth coupling rods, theconnecting rod being outside of all of them and between thesecond and third. Q. What is the usual way of…
