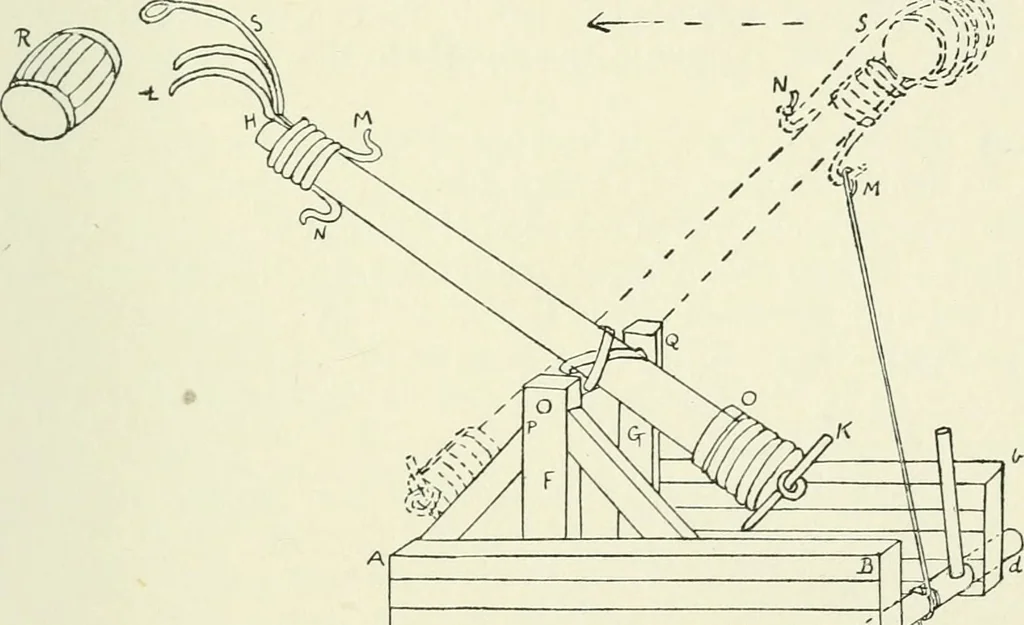

Plate XIII MEDI.EVAL SIEGE TOWERTRAPGET CHAPTER VIII WAR ENGINES PAST AND PRESENT A War Engine (Plate XIII). This piece of artillery was used atthe time of the crusade of Richard I. It is a simple and interest-ing model to make. The sides (a b c d in Fig. 325) are built upof pieces of stripwood I… … ^1^ Fig. 325 can be filed in the two bottom pieces to make holes, e, when thesepieces are glued together. A round rod passes through theseholes to form a windlass. Two posts, f and g, ^ X | X 3^, areglued to the sides about 1| inches from end, a c, as in figure; thesemust either have holes drilled…
