Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)
Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 70

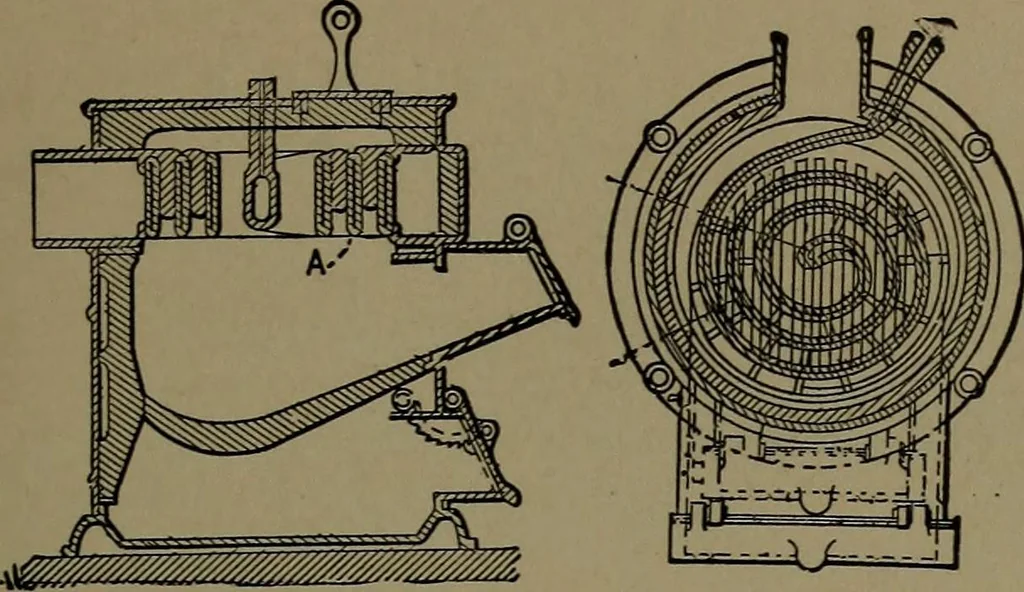

CAHALL VERTICAL WATER TUBEBOILER.—A water drum at the bottomforms the lower head for the tubes. An an-nular drum at the top forms the upper head,through which the smoke passes. The fur-nace and combustion chamber are outside, asis also the circulating pipe, as shown in thecut. 198. VERTICAL WATER… … 199-200. BOILER OFTHE SERPOLLETTRICYCLE.—The steam[generating surface is madeof iron pipe, flattened andcorrugated, then coiledinto a volute form with theinner end turned up, and the outer end to project through the furnace shell. The cuts show a vertical section and horizontal plan.
