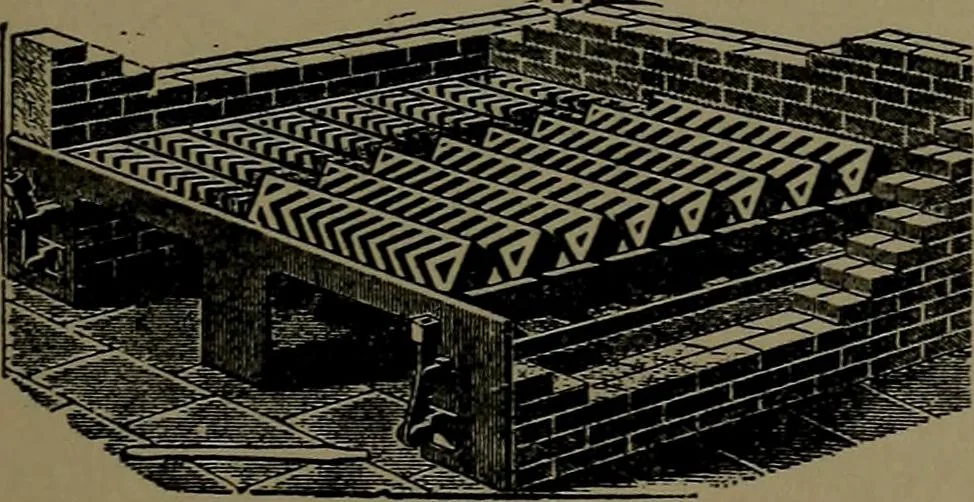

202. SERVES BOILER TUBE.—The pro-jecting ribs enlarge the area of the fire surface ofthe tube. … 203. SHAKING AND TIP-PING FURNACE GRATE, Tupper model. Each sectionrocks on trunnions by a handlever and connecting bar.
