Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 73

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 73

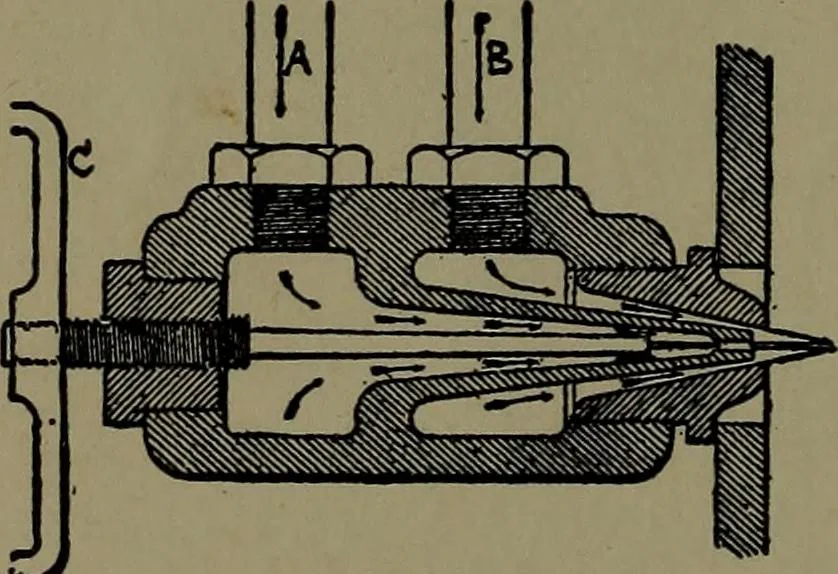

214. FEED WORM AND AIR BLAST, forfeeding fuel to furnaces or sand for an air sandblast. AIR BLAST «5W»—> sat … 215. PETROLEUM BURNER, for a furnace, for a boiler, or other require-ments. A, Entrance of oil to centralnozzle, which is regulated by a needlevalve with screw spindle and wheel, C;B, entrance of compressed air to theannular nozzle, the force of whichdraws the oil and atomizes it for…
