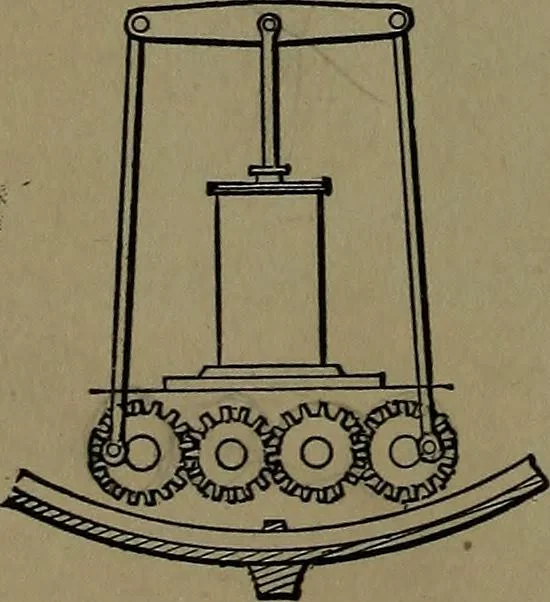

223. DIAGONAL TWIN-SCREW EN-GINE, arranged so that the connecting rodscross each other, thus economizing space. … 224. TWIN-SCREW VERTICAL CYLIN-DER ENGINE.—The outer gears are on thescrew shafts; the inner gears are idlers to keep thebeam even.
